CARBON MONOXIDE EXHAUST GAS ANALYZERS
General Description
▪
Key Features ▪
Applications ▪
Specifications
▪ Order Information
 |
Blanke Industries can put the power of a gas analyzer in the palm of your
hand, without taking a big chunk out of your wallet. Introducing the CO Series
1000 and 1500 Exhaust Gas Analyzers, a new benchmark in tune-up technology. The
analyzers are dependable, accurate and easy to use. Best of all, they are very
affordable.
These instruments are designed to check CO emissions from any internal
combustion engine powered by gasoline, propane, natural gas and even diesel
fuel. They each provide a cost effective method for measuring exhaust emissions
to help control pollutants. The analyzers are also powerful tools for
maintaining optimum fuel efficiency and extending engine life. With a CO Series
1000 or 1500, any engine can be properly tested and repaired to assure ideal
engine performance.
- Portable, hand-held instrument
- Instant "on" capability, no warm-up time
- Easy to read, digital display
- Powered by 12 volt vehicle battery
- Internal pump and sensor
- Durable, impact resistant enclosure
- Flexible stainless steel probe
- Easily calibrated in the field
- Backed by a 1 year warranty
- Made with pride in the U.S.
- Automobiles
- Motorcycles/ATVs
- Snowmobiles
- Marine/Boats
- Forklifts
- Floor Sweepers/Scrubbers
- Personnel/Burden Carriers
- Generators
|
|
General Specifications
|
Series 1000 |
Series 1500 |
|
| Power |
12 volts DC (external) |
Same |
| Start-up time |
Instant "on", no warm-up |
Same |
| Construction |
Rugged ABS plastic |
Same |
| Sample flow rate |
Approximately 72 in³/min (1180 ml/min) |
Same |
| Operating temperature |
35 to 104°F (2 to 40°C) |
Same |
| Storage temperature |
10 to 122°F (-10 to 50°C) |
Same |
| Humidity range |
10-90% RH (non-condensing) |
Same |
| User Calibration |
Monthly or as needed |
Same |
| CO: |
| Sensor type |
Electrochemical |
Same |
| Sensor life |
Typically 1-2 years |
Typically 3-5 years |
| Range |
0-4% |
0-10% |
| Resolution |
0.1% |
Same |
| Response time (90%) |
less than 30 seconds |
less than 10 seconds |
| Accuracy |
±10% of reading(1)
|
±5% of reading(1)
|
| Repeatability |
±10% of reading(1)
|
±5% of reading(1) |
| Physical: |
| Dimensions |
9.2” L × 5.1” W × 1.2” H |
Same |
| Weight |
1.86 pounds (0.84 kg) |
Same |
| Display |
3½ digit LCD, ½” digit height |
Same |
| Power Cable |
6’ L with battery clamps |
Same |
| Probe(s) |
12” flexible steel, ½” O.D. |
12” flexible steel, ½” & ¼” O.D.
|
| Sample hose |
10’ L × ¼” O.D. |
Same |
| Particle filter |
30 micron nylon screen |
Same |
| (1) Analyzer will meet accuracy and
repeatability specifications when zero and span calibrated in the environment
of use. All specifications and features
are subject to change without notice. © Copyright 2007 Blanke
Industries, Inc. All rights reserved.
|
|
|
|
Carbon Monoxide
Exhaust Gas Analyzer

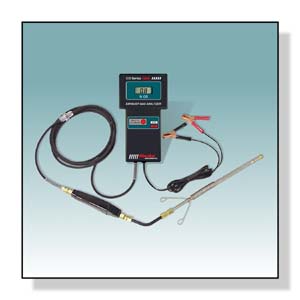

CO Series 1000:
Includes CO analyzer, 10’ exhaust sample hose with flexible probe
(½” O.D.), 6’ power cable with battery clamps
|
 |

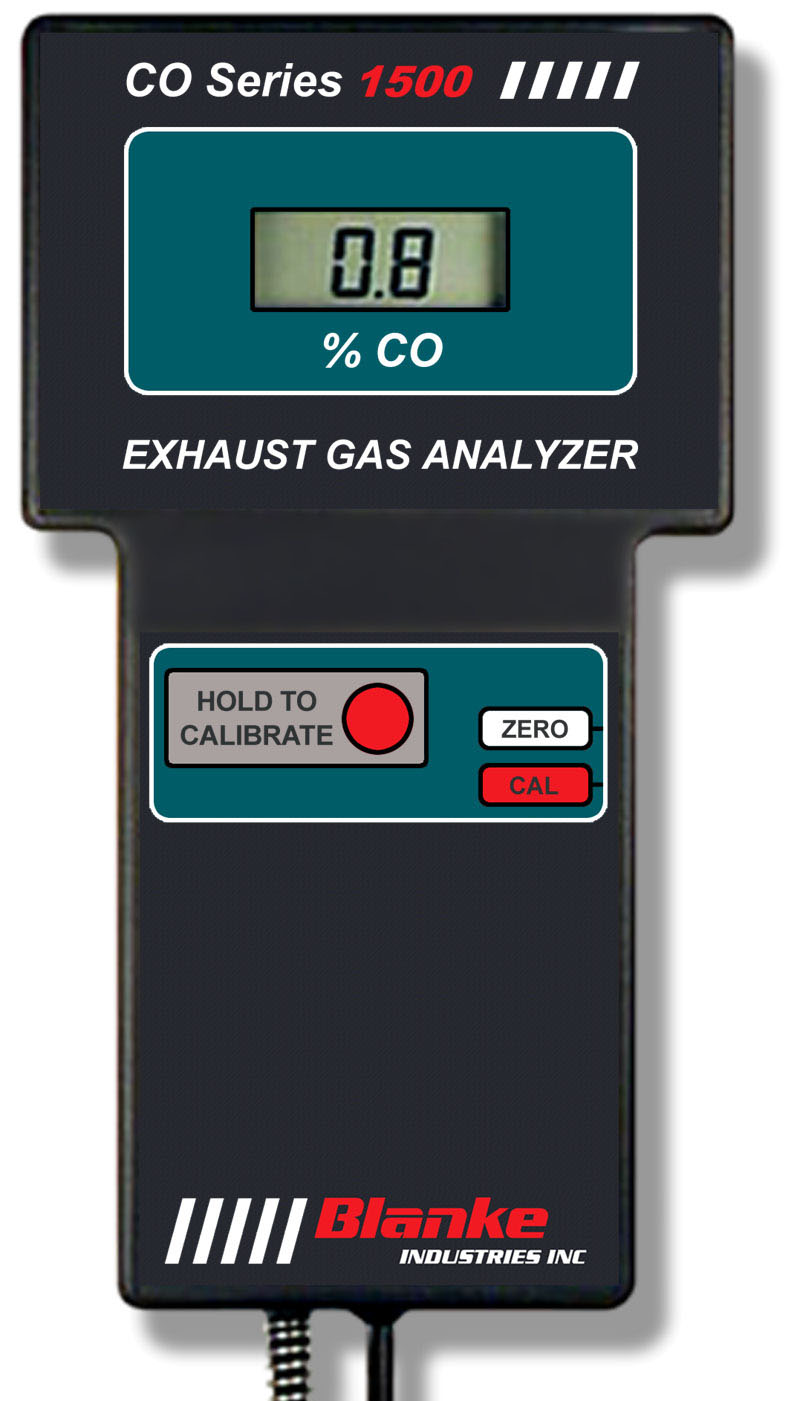

CO Series 1500:
Includes CO analyzer, 10’ exhaust sample hose with flexible probe
(½” O.D.), narrow flexible probe (¼” O.D.), 6’ power
cable with battery clamps and protective storage case |
 |
Optional Accessories
- Calibration kit (without calibration gas), No. CK-050
- Calibration gas cylinder (1.0% CO), No. CG-010: ideal for
fork lifts
- Calibration gas cylinder (4.0% CO), No. CG-040: ideal for
motorcycles
- Protective storage case, No. SC-100: for CO Series 1000
- Narrow flexible probe (¼” O.D.), No. FP-025
- Water separator w/ 2 stage filter, No. WS-755
|
| |
